Fiber Optic Cabling Barrie

Most commercial buildings are still wired for a bandwidth demand that no longer matches how the business actually operates. Fiber Optic Cabling Barrie replaces that bottleneck with a certified termination on every single run, built for the load a growing network actually needs.

A network is only as fast as its slowest link, and in most commercial buildings throughout Barrie that slow link is still copper cabling installed years before the business ever needed today's data volume. We approach every fiber project as an infrastructure investment, not a quick cable pull. A poorly planned installation creates bottlenecks that show up the moment the building adds another server rack, another point-of-sale terminal, or another floor of tenants pulling from the same shared backbone connection.

Understanding What Fiber Optic Cabling Involves

Light travels through the glass core instead of an electrical signal moving through copper wiring, which is the core distinction behind fiber's advantage for buildings in Barrie. A fiber run carries a clean signal hundreds of times further than copper before it needs boosting, and it carries none of the electromagnetic interference risk that copper picks up near motors, elevators, or heavy electrical equipment on a busy commercial floor.

Commercial installations throughout Barrie typically involve running fiber from a main distribution frame to individual telecom closets on each floor, then terminating each strand with connectors matched to the building's networking equipment. Single-mode fiber handles long-distance and high-speed backbone runs, while multimode fiber is more commonly used for shorter runs within a single floor or building where the extra distance capacity of single-mode is not needed.

The Fiber Optic Cabling Process Step by Step in Barrie

A commercial fiber project across Barrie starts with a site survey that maps existing conduit, identifies where new pathways need to be created, and confirms the building's proximity to the nearest lit fiber connection point. This early step matters more than almost any other in the project, since a building already connected to existing fiber infrastructure costs significantly less to wire than one requiring a new service drop from the street.

Once the survey confirms the routing plan, our technicians pull cable through existing conduit or install new pathways where none exist, always respecting the minimum bend radius fiber requires for properties throughout Barrie to avoid signal loss or physical damage to the glass core. Each strand is then terminated and tested with an optical time-domain reflectometer to confirm signal strength meets specification before the run is ever marked complete and handed off to the building's IT team.

Frequently Asked Questions

Why Bend Radius and Handling Matter More Than With Copper

Fiber optic strands are physically delicate in a way copper cabling is not, and mishandling during installation is one of the most common causes of a fiber run that tests poorly for buildings across Barrie after it is already installed and buried behind drywall. Bending a fiber strand tighter than its rated minimum radius can create microscopic cracks in the glass core that do not fail immediately but degrade signal quality gradually over months.

This is why an experienced installer matters more for fiber than it does for most other cabling work throughout Barrie. The damage from improper handling is often invisible until testing catches it, or worse, until the network starts dropping connections for no obvious reason months into normal operation. Our technicians follow strict bend-radius and pulling-tension standards on every commercial run to avoid exactly this kind of hidden failure.

Single-Mode Versus Multimode Fiber for Buildings Throughout Barrie

Single-mode fiber uses a narrower glass core and a laser light source, which allows it to carry signal over much longer distances with less loss than multimode fiber can manage for buildings across Barrie. This makes single-mode the standard choice for a building's main backbone run or for any connection between separate buildings on the same property.

Multimode fiber uses a wider core and an LED light source, and while its maximum distance is shorter, it costs less per foot and is more than sufficient for the shorter runs found within a single floor or a smaller commercial space. Many commercial buildings in Barrie actually use a mix of both: single-mode for the backbone and risers, multimode for horizontal runs out to individual telecom closets and equipment racks.

Fiber Drops and Termination Points for Properties Near Barrie

A fiber drop is the connection point where the backbone cable terminates and connects to a piece of networking equipment, whether that is a switch, a patch panel, or directly into a server. The number of drops a building needs for Fiber Optic Cabling Barrie depends on how many workstations, access points, cameras, and other networked devices the space will actually support once the installation is complete.

Commercial fiber drops throughout Barrie are typically priced per connection point rather than purely by linear footage, since each termination involves its own labor for stripping, polishing, and testing the connector regardless of how long the run leading up to it happens to be. A building planning significant growth often benefits from installing extra drops during the initial project rather than paying for a separate mobilization later.

New Conduit Versus Existing Pathways for Fiber Optic Cabling Barrie

A building that already has usable conduit in place costs meaningfully less to wire than one requiring entirely new pathways for properties throughout Barrie. Running new conduit through finished ceilings, walls, or across a parking area adds both labor and material that a building with existing infrastructure skips entirely. Checking conduit fill ratio matters here too, since an inner duct packed too tightly leaves no room for future cable additions.

Older commercial properties near Barrie sometimes have conduit that was sized for a previous generation of copper cabling and needs modification before fiber can be pulled through cleanly. Our team assesses existing pathways during the site survey specifically to flag this kind of issue before the project starts, rather than discovering it partway through the install.

Indoor Backbone Runs Compared to Building-to-Building Connections

An indoor backbone run connects a building's main equipment room to telecom closets on each floor, and this type of installation is generally the more straightforward and lower-cost portion of Fiber Optic Cabling Barrie work. Indoor runs are protected from weather and typically follow existing vertical risers already built into the structure.

Building-to-building fiber, sometimes required for campuses or properties with multiple structures across Barrie, involves either underground trenching or aerial installation between poles, both of which add significant cost and permitting complexity compared to indoor work. Underground routing avoids weather exposure but requires trenching and often a directional bore under paved areas, while aerial routing is faster to install but exposed to the elements over its full run.

Property managers overseeing a multi-building campus should budget for this distinction early in the planning process, since the cost difference between an indoor riser upgrade and a new building-to-building link can be substantial. Underground work in particular often needs its own permit review from the municipality before any trenching begins, which adds lead time that a purely indoor project never has to account for.

How Long a Commercial Fiber Optic Cabling Project Takes in Barrie

A single-floor installation with existing conduit and a modest number of drops typically takes 1 to 3 days from the start of physical cabling to final testing and sign-off. A full-building project spanning multiple floors, especially one requiring new conduit or a building-to-building connection, can extend to several weeks depending on scope.

Permitting adds its own timeline on top of the physical installation for projects throughout Barrie, particularly for any work involving trenching, aerial pole attachments, or municipal right-of-way. Our team handles the permitting process as part of the overall project plan so a business knows the realistic full timeline before committing to a start date.

Businesses across Barrie planning a move or a lease start date should factor fiber installation into their timeline well before the target occupancy date, especially if the building requires new conduit or a service drop from an external access point. Scheduling the site survey early gives enough lead time to account for permitting delays without holding up the move-in date itself.

Pricing for Fiber Optic Cabling Barrie

Typical costs for Fiber Optic Cabling in Barrie range from $1,500 to $30,000 depending on building size, the number of drops required, and whether new conduit or building-to-building connections are part of the scope. A single floor with existing pathways and a modest drop count sits toward the lower end, while a multi-floor building or a campus connection sits significantly higher.

Contact us via contact us or call (249) 496-3382 to get a quote specific to your building, and expect a detailed breakdown of drop count, conduit needs, and labor before any project begins. Every quote for Fiber Optic Cabling Barrie reflects an actual site survey rather than a generic per-foot estimate, since building access, existing infrastructure, and routing complexity all shift the real cost significantly.

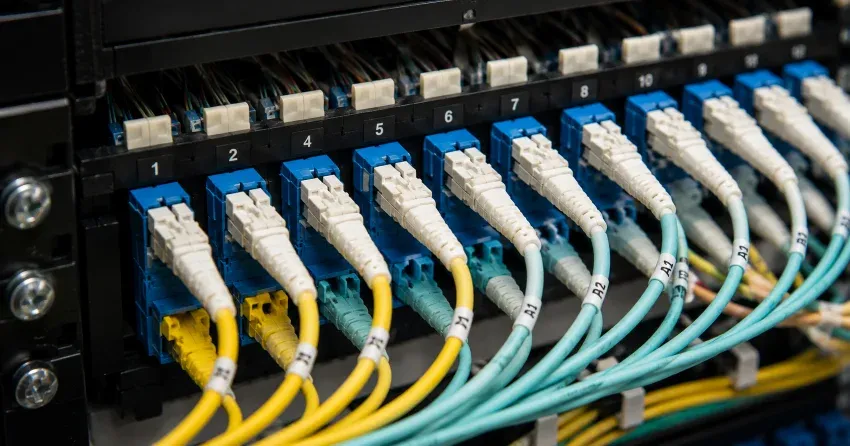

Cable Management and Patch Panel Organization

A Fiber Optic Cabling Barrie installation is only as maintainable as its cable management, and a rushed job that skips proper labeling and routing creates headaches for IT staff years after the crew has left. Every strand should terminate into a labeled port on a patch panel, with clear documentation showing which port connects to which physical location in the building. Loose or unlabeled strands left coiled behind a rack are a common shortcut that turns a five-minute troubleshooting job into an hours-long search.

Commercial telecom closets across Barrie that receive proper cable management during installation are dramatically easier to troubleshoot and expand later, since a technician can trace a single connection without disturbing dozens of other active runs. We label and document every termination as a standard part of the project, not an optional add-on billed separately.

What Happens After Installation Is Complete

Every Fiber Optic Cabling Barrie run gets tested with an optical time-domain reflectometer before our team considers a project finished, confirming signal loss falls within acceptable range across the entire length of cable. This test result is documented and provided to the building's IT team, giving them a baseline reading to compare against if a connection issue ever needs troubleshooting down the line.

A properly installed and terminated single-mode fiber backbone for buildings across Barrie is rated to perform reliably for 20 or more years under normal commercial use, far outlasting the networking equipment connected to either end of it. That longevity is part of why fiber is worth the higher upfront cost compared to copper: the cabling itself becomes the one part of the network infrastructure a business rarely needs to touch again.

Certified Technicians Make the Difference on Commercial Projects

Barrie Electrical Services is fully licensed and insured, and every Fiber Optic Cabling Barrie installation is backed by a workmanship guarantee covering both the physical cabling and the quality of every termination. With 15 years of experience wiring commercial buildings, our technicians understand the difference between a run that tests fine on day one and a run that will still perform reliably five years into a growing network's demands.

Businesses throughout Barrie choose Barrie Electrical Services for fiber projects specifically because a bad termination or a bent strand does not show up as a problem immediately. It shows up months later as a mysterious slowdown or a dropped connection nobody can easily trace, which is exactly the kind of hidden failure proper technique and testing prevent from the start.

Book Fiber Optic Cabling Barrie With Barrie Electrical Services

Barrie Electrical Services has wired everything from single-floor office fit-outs to full building backbones for properties across Barrie, which means the crew has already handled whatever conduit configuration or building layout your project presents. A network that performs well on day one and still performs well five years later is the actual measure of a good installation, not just a passed test on the day the crew leaves. That long-term reliability is what a business is really paying for when it chooses fiber over a cheaper copper alternative.

contact us or call (249) 496-3382 to get a site survey scheduled and a realistic project timeline in hand, with a clear breakdown of drop count, routing, and cost before any cable gets pulled. A single-floor fit-out and a full campus backbone both get the same termination standard on every strand.
