Motor Control Wiring Allandale, Barrie

A motor that trips on startup, a VFD that won't hold speed, a contactor that chatters instead of engaging cleanly. Motor Control Wiring Allandale, Barrie problems rarely announce themselves clearly, and guessing at the fix usually makes the actual fault harder to find down the line.

Facilities across Allandale, Barrie running conveyors, pumps, compressors, and fans depend on motor control circuits that most people never think about until something stops working. A contactor, an overload relay, and a control circuit form the backbone of a standard motor starter, and each piece has to be sized and wired correctly for the specific motor and application. Barrie Electrical Services treats motor control wiring as its own specialized discipline, not a generic subset of electrical work. The failure modes here are distinct enough that generic troubleshooting wastes time a production floor cannot afford to lose, especially when a line sits idle waiting for a diagnosis.

What a Standard Motor Starter Includes Near Allandale, Barrie

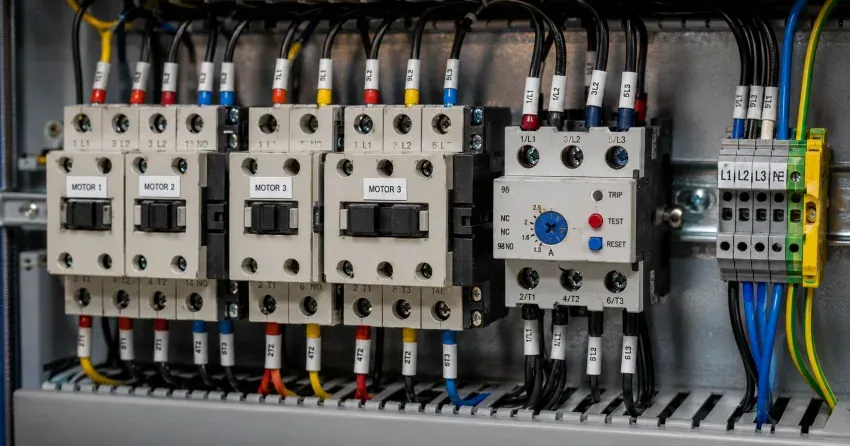

Most motor starters consist of three core components: a contactor that switches power to the motor, an overload relay that protects against excessive current, and a control circuit that provides start and stop signals. Motor Control Wiring Allandale, Barrie has to account for each of these pieces individually. The contactor handles the actual power switching, typically at 120 VAC or 24 VDC for the control side, while the overload relay monitors current draw and interrupts the circuit before a sustained overcurrent condition damages the motor windings.

A direct-online, or DOL, starter is the simplest configuration and switches full power to the motor on startup, which creates a large current draw compared to the motor's normal running current. This approach works well for smaller motors, but larger installations across Allandale, Barrie often move to reduced-voltage starters, soft starts, or variable frequency drives specifically to manage that startup current spike more gracefully.

Direct-Online Versus Star-Delta Versus VFD Control

A DOL starter connects power directly to the motor terminals through the contactor, with overload relays providing current protection, and remains the most straightforward and cost-effective option when speed control is not required near Allandale, Barrie. Star-delta starters take a different approach, running the motor in a star configuration during startup to reduce inrush current before switching to delta for normal running conditions, which meaningfully softens the mechanical and electrical stress a large motor puts on a system at startup.

Frequently Asked Questions

Choosing between these three approaches depends on the specific motor size, application, and whether the equipment genuinely benefits from variable speed operation or simply needs to run at a fixed speed reliably around Allandale, Barrie. A conveyor moving material at a constant rate rarely needs the sophistication of a VFD, while a pump matching output to variable demand often sees real energy savings from one, savings substantial enough to justify the additional upfront cost within a reasonable payback period.

Variable frequency drives represent the most sophisticated Motor Control Wiring Allandale, Barrie option, controlling motor speed and torque by adjusting the frequency and voltage supplied to the motor rather than simply switching power on and off. VFDs deliver genuine energy savings, reduced mechanical stress, and precise process control, which is why facilities increasingly specify them for any application where variable speed operation adds real operational value.

A VFD also takes several seconds to power on once voltage is applied around Allandale, Barrie, which surprises technicians expecting the same instant response a standard contactor-based starter provides. Run and stop control on a properly wired VFD comes through dedicated digital inputs rather than the line-side switching a DOL starter relies on, with speed set through an analog signal or a preset programmed directly into the drive.

Common Wiring Mistakes Around Allandale, Barrie

Why VFD Wiring Has Its Own Rules

Most VFD manufacturers specifically advise against placing a contactor or disconnect switch on the line or load side of a drive for routine run and stop control near Allandale, Barrie, reserving that switching for genuine emergency situations only. Opening a contactor on either side of an active VFD while the motor is running can damage the inverter section or shorten the drive's service life. A technician unfamiliar with VFD-specific wiring practices can trigger this failure mode without realizing the mistake until the drive fails weeks later.

Grounding and Noise Suppression Matter More Than Expected

Noise problems show up often enough in VFD applications around Allandale, Barrie that proper shielding, grounding, and filtering deserve attention from the initial installation rather than being treated as an afterthought once symptoms appear. When multiple VFDs share a single location, each drive needs its own ground connected in parallel back to a single ground point, since daisy-chaining ground wires between drives creates ground loops that introduce exactly the electrical noise proper grounding is meant to prevent.

A line reactor helps protect the drive from transient voltages and reduces harmonic distortion flowing back into the facility's electrical system near Allandale, Barrie, an improvement that becomes more noticeable as more VFDs get added to the same electrical service over time. Getting these details right during the original installation avoids a much harder diagnostic process later, when noise-related symptoms can look identical to a dozen other possible causes.

Protection at the Device Input

Overcurrent and ground-fault protection at the input of any Motor Control Wiring Allandale, Barrie device is a code requirement, not an optional safety margin. Skipping or undersizing this protection is one of the more common shortcuts an inexperienced installer takes to save time on a job. Facilities that have dealt with a motor control failure traced back to inadequate protection at the device input usually end up paying for a proper correction anyway, on top of whatever the original failure already cost in downtime.

Load-side wiring length between a VFD and its motor matters more than most facility managers realize in Motor Control Wiring Allandale, Barrie projects. Runs longer than roughly 75 feet increase the risk of reflective wave damage to the drive's output transistors unless a load-side reactor is added to the circuit. This is exactly the kind of detail that separates a wiring job that holds up for years from one that causes a mysterious drive failure a few months after a seemingly successful installation.

Loose terminal connections rank among the most common causes of intermittent Motor Control Wiring Allandale, Barrie faults, since a connection that tests fine under a quick visual inspection can still be loose enough to cause voltage drop or arcing under actual load. Torquing every terminal to the manufacturer's specified value during installation, rather than simply tightening by feel, prevents this specific failure mode from ever becoming a problem months down the line and saves a costly diagnostic visit later.

Safety Functions to Address Around Allandale, Barrie

A proper risk assessment on nearly any VFD installation around Allandale, Barrie reveals the need for a genuine safe-stop function alongside standard start and stop control, not just a simple on-off signal from a switch or PLC. Safe torque off, a functional safety capability defined under IEC 61800-5-2, is available as an option on most modern drives and should be specified whenever the application involves personnel working near the equipment.

Auxiliary contacts on any switching device placed near a drive should always open the run command whenever that device is opened throughout Allandale, Barrie, ensuring the drive cannot be commanded to run with a disconnect or contactor in the open position. This interlock is a small detail on a wiring diagram that prevents a genuinely dangerous failure mode if someone opens a disconnect expecting the motor to stop immediately.

Retrofitting VFDs Throughout Allandale, Barrie

Facilities across Allandale, Barrie replacing aging motors often want to add VFD control while reusing existing motor control center infrastructure, particularly when the MCC itself remains in good condition despite the motors nearing end of life. This is generally achievable, but it requires careful attention to how the existing contactor output feeds the new VFD input, along with confirming the auxiliary contacts and control logic actually prevent the drive from running with any upstream switching device open.

Panel space constraints often drive this kind of retrofit decision as much as the motors themselves near Allandale, Barrie, since adding new VFDs to a dedicated panelboard is not always feasible when breaker space is already fully allocated. Our technicians assess the existing infrastructure honestly before recommending a retrofit approach, since forcing a VFD into an MCC not genuinely suited for it creates more problems than it solves.

Troubleshooting a Motor That Will Not Start

A systematic approach to motor control troubleshooting starts with verifying incoming power at the contactor, then checking the control circuit voltage, and finally confirming the overload relay has not tripped before assuming a deeper fault exists. Facilities near Allandale, Barrie that call in a technician after their own troubleshooting attempt often discover the actual fault sat in a spot nobody checked first, since a natural instinct to assume the most complex possible cause sometimes skips the simplest checks first.

Contactor Chatter and Control Voltage Faults

Contactor chatter, a rapid buzzing or clicking rather than a clean engagement, usually points to a control voltage problem or a mechanical binding issue rather than a fault with the motor itself. Diagnosing this correctly the first time saves a facility from an unnecessary motor removal when the actual problem sat entirely within the control circuit driving the contactor coil.

Repeated Overload Trips

An overload relay that trips repeatedly on a motor that otherwise runs fine is not always a sign the relay itself needs replacing. It often points to a motor running slightly overloaded for its rated capacity, a supply voltage imbalance across the three phases, or an overload relay simply set to the wrong trip current for the motor's actual nameplate rating throughout Allandale, Barrie. Correcting the root cause here matters more than repeatedly resetting or replacing an overload relay that is doing exactly the job it was originally designed and installed to do.

Pricing for Motor Control Wiring Near Allandale, Barrie

Typical costs for Motor Control Wiring Allandale, Barrie work range from $100 to $250 per hour for licensed industrial electrical labor, with full motor starter or VFD installations often quoted as a fixed project price once the scope and motor specifications are confirmed. A straightforward troubleshooting or repair call sits toward the lower end, while a full VFD retrofit into an existing motor control center sits higher depending on drive size and the extent of panel modification required.

Every quote for Motor Control Wiring Allandale, Barrie reflects an on-site assessment of the existing motor, control circuit, and available infrastructure, since motor control work varies too much between installations to price accurately without seeing the actual equipment. Contact us via contact us or call (249) 496-3382 today to get an accurate, honest quote specific to your facility's motors and control requirements.

The Barrie Electrical Services Standard for Motor Control Work

Barrie Electrical Services is fully licensed and insured, and every Motor Control Wiring Allandale, Barrie project is backed by a workmanship guarantee on the completed installation. With 15 years of experience across industrial motor control systems, our technicians understand the specific wiring practices that separate a reliable VFD or starter installation from one prone to nuisance faults and premature failure.

We never treat motor control wiring as interchangeable with general electrical work, since the failure modes and safety considerations here genuinely differ from standard branch circuit wiring. That specialized approach is why facility managers throughout Allandale, Barrie trust this team with recurring motor control maintenance rather than calling whoever happens to be available during an emergency, and why several client relationships have lasted for years across multiple facility expansions.

Get Motor Control Wiring Service in Allandale, Barrie

A Motor Control Wiring Allandale, Barrie fault that keeps recurring after a previous repair usually means the underlying cause was never actually addressed, just temporarily masked. Barrie Electrical Services diagnoses motor control issues systematically, checking the contactor, overload relay, and control circuit in sequence rather than guessing at the most likely single cause. That systematic process is what turns a frustrating, recurring problem into a fault that gets found and fixed correctly on the first visit, saving both the cost of repeat service calls and the accumulated production downtime each one causes. A single troubleshooting call, a full VFD installation, or an ongoing preventive maintenance relationship all get the same careful diagnostic approach. Call (249) 496-3382 or contact us to schedule a technician for your facility's motor control systems.
